Kroki Configuration Guide

This guide provides comprehensive instructions for configuring Kroki with docToolchain, including the background story of why multiple attribute sets exist.

Overview

Kroki is a service that converts text-based diagrams (PlantUML, Mermaid, GraphViz, etc.) into images without requiring local tool installations. However, configuring Kroki in docToolchain can be confusing due to historical evolution of diagram extensions.

docToolchain uses the asciidoctor-diagram extension version 2.3.1 with Kroki delegation capabilities. This means you should use the :diagram-server-* attributes for proper functionality.

The Two Extensions

There are two different AsciiDoc extensions that support Kroki:

asciidoctor-diagram: The All-Rounder (Used by docToolchain)

The original asciidoctor-diagram extension existed before Kroki and supported local tools. In version 2.1.0, Kroki support was added:

:diagram-server-url: https://kroki.io/
:diagram-server-type: kroki_io

This extension can use both local tools AND delegate to Kroki servers. This is what docToolchain uses.

asciidoctor-kroki: The Specialist

The specialized asciidoctor-kroki extension was built exclusively for Kroki:

:kroki-server-url: https://kroki.io/

This extension is optimized specifically for Kroki integration, but is not used by docToolchain.

Required Configuration for docToolchain

Since docToolchain uses asciidoctor-diagram, you must use these attributes:

// Required for docToolchain (uses asciidoctor-diagram)
:diagram-server-url: https://kroki.io/
:diagram-server-type: kroki_io

Defensive Configuration Strategy (Recommended)

To ensure compatibility with both extensions and future changes, use all attributes:

// Kroki configuration (compatible with all extensions)
:diagram-server-url: https://kroki.io/
:diagram-server-type: kroki_io
:kroki-server-url: https://kroki.io/

Configuration in docToolchainConfig.groovy

asciidoctorAttributes = [
    // Required for docToolchain (asciidoctor-diagram)
    'diagram-server-url': 'https://kroki.io/',
    'diagram-server-type': 'kroki_io',

    // Optional defensive configuration
    'kroki-server-url': 'https://kroki.io/',

    // Other attributes...
    'toc': 'left',
    'icons': 'font'
]

Enterprise Setup: Local Kroki Server

For organizations that prefer not to send diagrams to external services:

Docker Setup

# Start Kroki locally
docker run -d --name kroki -p 8000:8000 yuzutech/kroki

# Verify it's running
curl http://localhost:8000/health

Configuration for Local Server

// Local Kroki server configuration
:diagram-server-url: http://localhost:8000/
:diagram-server-type: kroki_io
:kroki-server-url: http://localhost:8000/

Or in docToolchainConfig.groovy:

asciidoctorAttributes = [
    'diagram-server-url': 'http://localhost:8000/',
    'diagram-server-type': 'kroki_io',
    'kroki-server-url': 'http://localhost:8000/',
]

Practical Examples

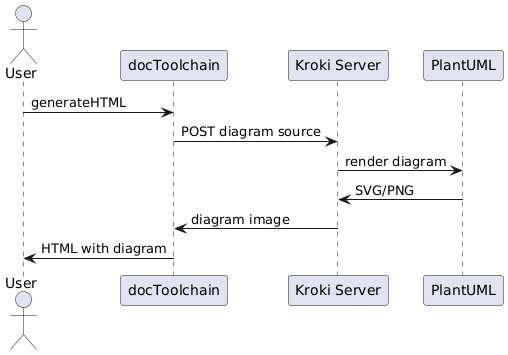

PlantUML Sequence Diagram

[plantuml]
....
@startuml
actor User
participant "docToolchain" as DTC
participant "Kroki Server" as Kroki
participant "PlantUML" as PUML

User -> DTC: generateHTML
DTC -> Kroki: POST diagram source
Kroki -> PUML: render diagram
PUML -> Kroki: SVG/PNG
Kroki -> DTC: diagram image
DTC -> User: HTML with diagram
@enduml
....
Diagram

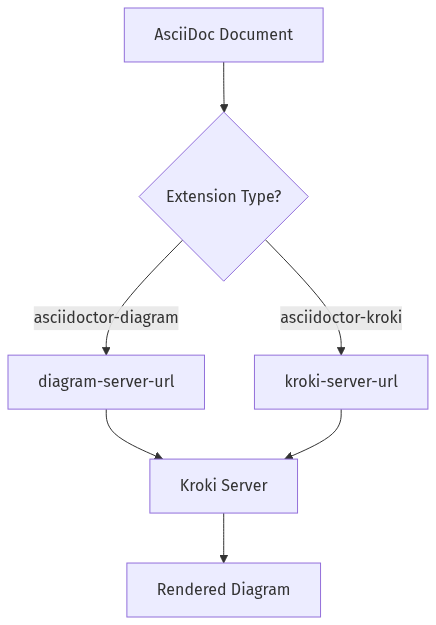

Mermaid Flowchart

[mermaid]
....
graph TD
    A[AsciiDoc Document] --> B{Extension Type?}
    B -->

asciidoctor-diagram

C[diagram-server-url] B -→

asciidoctor-kroki

D[kroki-server-url] C -→ E[Kroki Server] D -→ E E -→ F[Rendered Diagram] …​. ----


Failed to generate image: Could not find the 'mmdc' executable in PATH; add it to the PATH or specify its location using the 'mmdc' document attribute
graph TD
    A[AsciiDoc Document] --> B{Extension Type?}
    B -->

asciidoctor-diagram

C[diagram-server-url] B -→

asciidoctor-kroki

D[kroki-server-url] C -→ E[Kroki Server] D -→ E E -→ F[Rendered Diagram] …​.

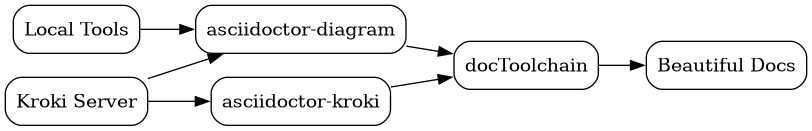

GraphViz Diagram

[graphviz]
....
digraph G {
    rankdir=LR;
    node [shape=box, style=rounded];

    "Local Tools" -> "asciidoctor-diagram";
    "Kroki Server" -> "asciidoctor-diagram";
    "Kroki Server" -> "asciidoctor-kroki";

    "asciidoctor-diagram" -> "docToolchain";
    "asciidoctor-kroki" -> "docToolchain";

    "docToolchain" -> "Beautiful Docs";
}
....
Diagram

Supported Diagram Types

Kroki supports numerous diagram types:

  • PlantUML

  • Mermaid

  • GraphViz

  • Ditaa

  • BlockDiag

  • BPMN

  • C4 (with PlantUML)

  • And many more

For a complete list, visit kroki.io.

Troubleshooting

Diagrams Not Rendering

  1. Check server connectivity: [source,bash] ---- curl https://kroki.io/health ----

  2. Verify attribute configuration:

    • Ensure at minimum the :diagram-server-url: and :diagram-server-type: attributes are set

    • Check for typos in attribute names

  3. Test with simple diagram: [source,asciidoc] ---- [plantuml] …​. A → B …​. ----

Local Server Issues

  1. Container not starting: [source,bash] ---- docker logs kroki ----

  2. Port conflicts: [source,bash] ---- # Use different port docker run -d --name kroki -p 8080:8000 yuzutech/kroki ----

  3. Firewall blocking access:

    • Ensure port 8000 (or your chosen port) is accessible

    • Check corporate firewall settings

Network Configuration

For corporate environments:

// Configure proxy if needed
System.setProperty("http.proxyHost", "proxy.company.com")
System.setProperty("http.proxyPort", "8080")
System.setProperty("https.proxyHost", "proxy.company.com")
System.setProperty("https.proxyPort", "8080")

Advanced Configuration

Custom Kroki Instance with Additional Services

Some diagram types require additional containers:

# Full Kroki setup with all services
docker-compose up -d

# Or selective services
docker run -d --name kroki-mermaid yuzutech/kroki-mermaid
docker run -d --name kroki-bpmn yuzutech/kroki-bpmn

Security Considerations

Network Security

  • Use HTTPS for external Kroki servers

  • Consider VPN for remote team access to local instances

  • Implement proper firewall rules

Data Privacy

  • Evaluate whether diagram content contains sensitive information

  • Consider local deployment for confidential projects

  • Review data retention policies of external services

Why Use Defensive Configuration?

This approach offers several benefits:

✅ Future-proof: Works with extension updates
✅ Flexible: if docToolchain ever switches between extensions, this setup will still work
✅ Robust: No breaking changes with upgrades
✅ Team-friendly: Team members don’t need to know implementation details

Further Resources

Contributing

Found an issue with this guide or have improvements? Please contribute:

  1. Report issues on GitHub

  2. Submit pull requests with corrections

  3. Share your configuration experiences

Your feedback helps improve the documentation for everyone!
