Use Cases

Actors

Actor	Description
Software Architect	Primary user who maintains the architecture model and draw.io diagrams. Edits both the JSON DSL and draw.io visually.
Developer	Reads architecture diagrams in draw.io. May occasionally add elements or relationships in draw.io.
LLM Agent	AI assistant that manipulates the architecture model via CLI commands. Reads and writes JSON model files.

Actor

Description

Software Architect

Primary user who maintains the architecture model and draw.io diagrams. Edits both the JSON DSL and draw.io visually.

Developer

Reads architecture diagrams in draw.io. May occasionally add elements or relationships in draw.io.

LLM Agent

AI assistant that manipulates the architecture model via CLI commands. Reads and writes JSON model files.

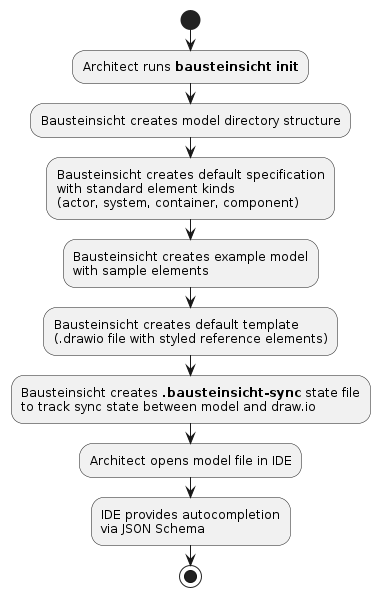

UC-1: Initialize Architecture Model

Primary Actor: Software Architect
Level: User Goal
Scope: Bausteinsicht (CLI + sync engine)
Trigger: The architect starts a new project and runs bausteinsicht init.

Preconditions

Bausteinsicht CLI is installed
A project directory exists

Main Success Scenario

The architect runs bausteinsicht init in an empty project directory.
Bausteinsicht creates the sample specification — eight element kinds: actor, system, external_system, container, datastore, ui, queue, component.
Bausteinsicht creates an example model with sample elements using those kinds.
Bausteinsicht creates the default draw.io template (template.drawio).
Bausteinsicht runs an initial forward sync to generate architecture.drawio.
Bausteinsicht writes the .bausteinsicht-sync state file.
The architect opens the model in an IDE, which provides autocompletion and validation via the JSON Schema.

Activity Diagram

Extensions

1a. One of architecture.jsonc, architecture.drawio, or template.drawio already exists: Bausteinsicht aborts with exit code 2 (an existing .bausteinsicht-sync is not checked).

Postconditions

Success guarantee: A valid model (architecture.jsonc), a template (template.drawio), an initial diagram (architecture.drawio), and a .bausteinsicht-sync state file exist; the generated sample satisfies BR-032 and BR-033.

Minimal guarantee: If any of architecture.jsonc, architecture.drawio, or template.drawio already exists, none of those three is created or overwritten.

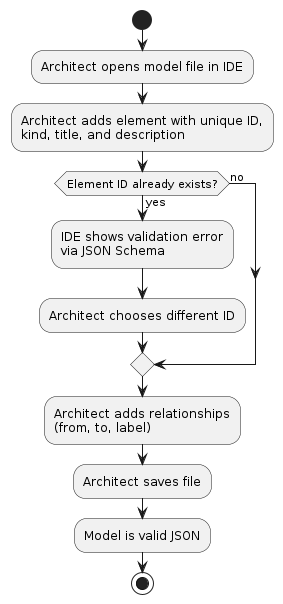

UC-2: Define Architecture Elements

Primary Actor: Software Architect
Level: User Goal
Scope: Bausteinsicht (model file)
Trigger: The architect needs to add or change elements and relationships in the model.

Preconditions

An initialized architecture model exists
IDE has JSON Schema support active

Main Success Scenario

The architect opens the model file in the IDE.
The architect adds an element with a unique ID, kind, title, and optional description.
The IDE validates against the JSON Schema as the architect types.
The architect adds relationships (from, to, label).
The architect saves the file; the model remains valid JSON.

Activity Diagram

Extensions

2a. The chosen ID duplicates an existing element key: JSON object keys must be unique, so the editor/JSON tooling flags the collision (plain JSON would silently keep only the last); the architect picks a different ID. (BR-005 separately requires IDs to be non-empty.) 4a. A relationship references a non-existent element: bausteinsicht validate (and sync) reports it as an error (BR-007, BR-008).

Postconditions

Success guarantee: The model contains the new elements with unique IDs and relationships referencing valid element IDs (BR-001–BR-012).

Minimal guarantee: Invalid edits are caught by the schema and by validation before sync; the model is never silently corrupted.

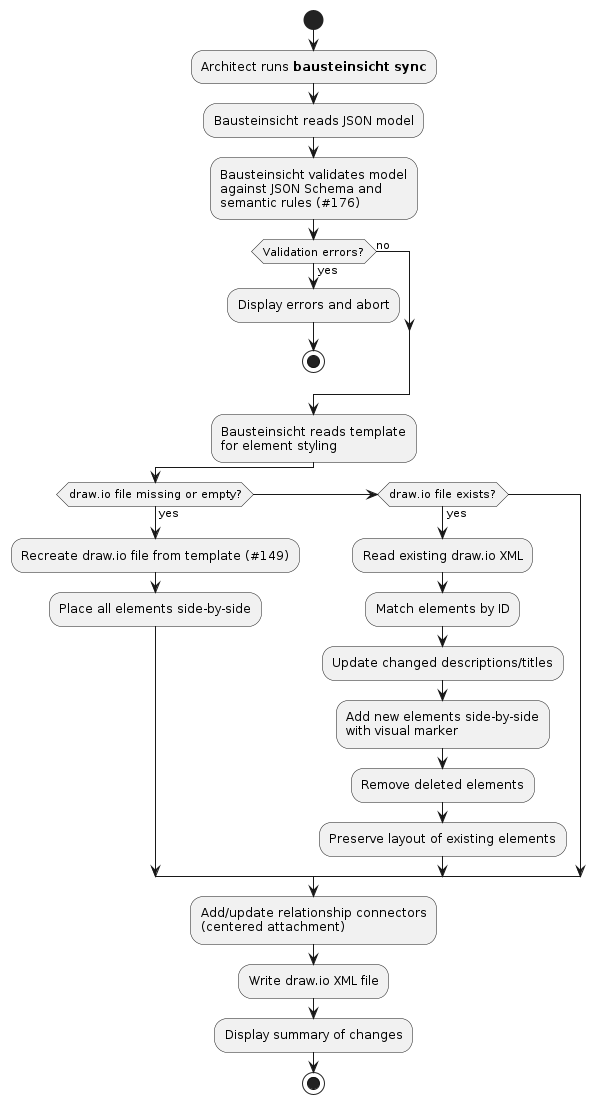

UC-3: Generate draw.io Diagrams (Forward Sync)

Primary Actor: Software Architect
Level: User Goal
Scope: Bausteinsicht (sync engine)
Trigger: The architect runs bausteinsicht sync after changing the model.

Preconditions

A valid architecture model exists
(Optional) A draw.io template — template.drawio next to the model or --template <path>; otherwise the embedded default template is used
(Optional) Existing draw.io diagrams with manual layout

Main Success Scenario

The architect runs bausteinsicht sync.
Bausteinsicht reads the model and runs validation (the business rules; JSON Schema validation is IDE-side, not part of the CLI sync).
Bausteinsicht resolves the template for element styling (--template > local template.drawio > embedded default).
For an existing diagram, it matches elements by bausteinsicht_id, updates changed titles/descriptions, adds new elements (visually marked), removes deleted ones, and preserves the existing layout.
Bausteinsicht adds and updates relationship connectors with centered attachment.
Bausteinsicht writes the draw.io XML and prints a summary of changes.

Activity Diagram

Extensions

2a. The model is invalid: validation errors are displayed and the sync aborts with exit code 1 (BR-001–BR-026). 3a. No local template.drawio and no --template: Bausteinsicht uses the embedded default template (not an error). 4a. The draw.io file is missing or empty: Bausteinsicht prints a warning, recreates it from the template, and lays the elements out with the layout engine (default layered). 6a. Writing the draw.io file fails (e.g. the path is not writable): Bausteinsicht reports an error and exits with code 2.

Postconditions

Success guarantee: The draw.io file reflects the current model state; existing element positions are preserved; new elements are visually marked for manual positioning; relationship connectors attach to element centers.

Minimal guarantee: On a validation error, the existing diagram is left unchanged.

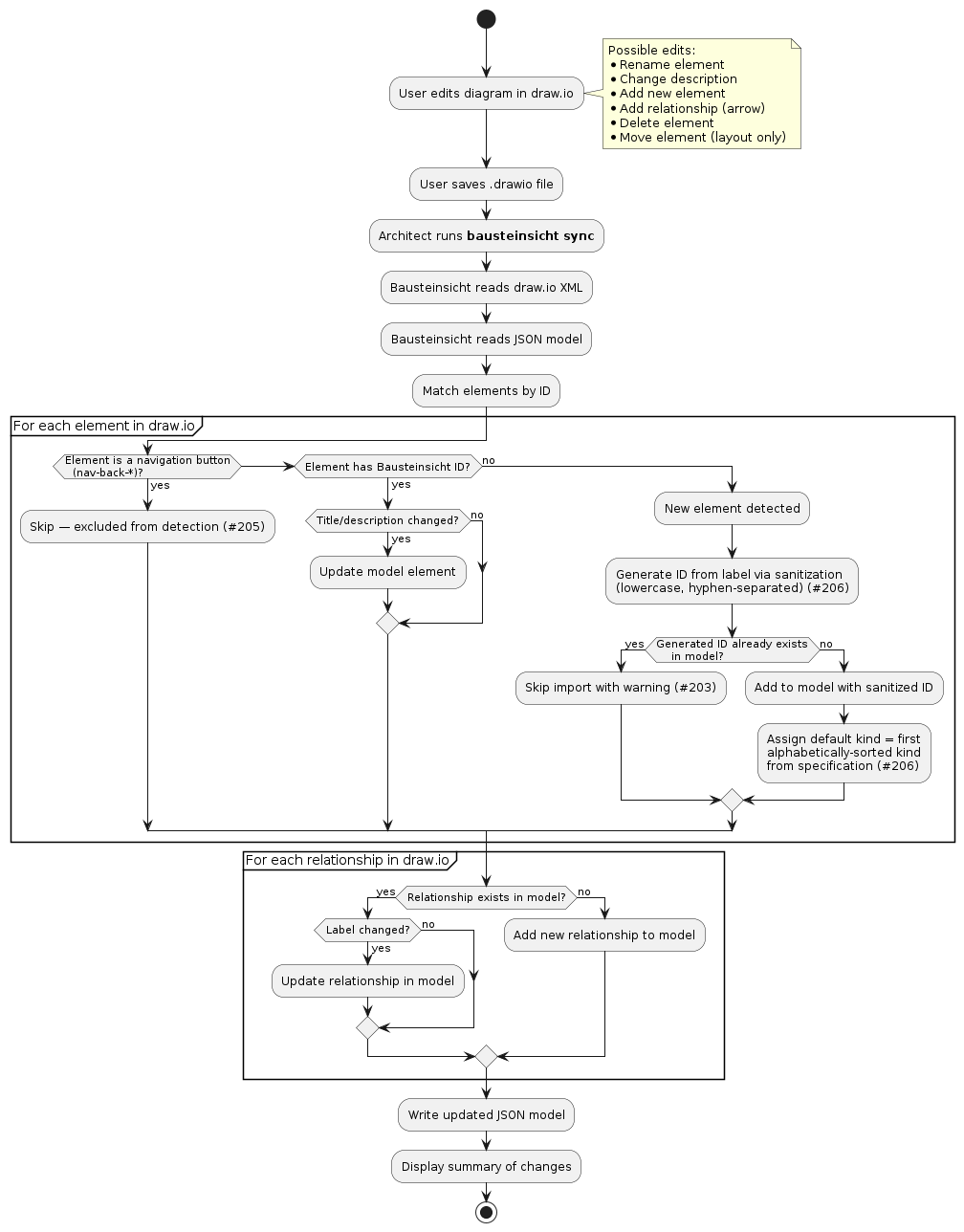

UC-4: Edit in draw.io and Reverse Sync

Primary Actor: Software Architect or Developer
Level: User Goal
Scope: Bausteinsicht (sync engine)
Trigger: Someone has edited the diagram in draw.io and runs bausteinsicht sync.

Preconditions

draw.io diagrams were previously generated from the model
Elements in draw.io carry Bausteinsicht IDs

Main Success Scenario

The user edits the diagram in draw.io (rename, change description, add an element or relationship, delete, or move) and saves.
The architect runs bausteinsicht sync.
Bausteinsicht reads the draw.io XML and the model and matches elements by ID.
For each element carrying a bausteinsicht_id whose title or description changed, it updates the model element.
For each new element, it derives an ID from the label (sanitized: lowercase, hyphen-separated) and assigns the first alphabetically-sorted kind from the specification.
For each relationship, it adds new ones and updates changed labels.
Bausteinsicht writes the updated model and prints a summary of changes.

Activity Diagram

Extensions

3a. The element is a navigation button (nav-back-*): it is skipped — excluded from detection (#205). 4a. The same element changed in both the model and the diagram: a warning is displayed and the model wins; there is no silent overwrite. 5a. The generated ID collides with an existing element: the import is skipped with a warning (#203). 5b. A draw.io element has no ID and cannot be auto-matched: a warning with manual-resolution instructions is shown.

Postconditions

Success guarantee: The model reflects the diagram edits; new elements have sanitized IDs (lowercase, hyphen-separated) and the first alphabetically-sorted kind; colliding IDs are skipped with a warning; navigation buttons are ignored; element positions (layout) do not modify the model.

Minimal guarantee: Conflicting changes never silently overwrite the model; layout-only edits never change it.

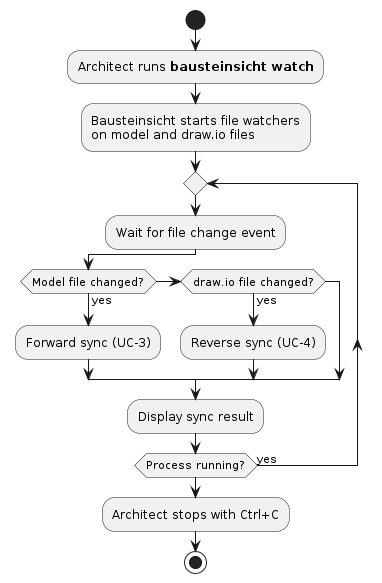

UC-5: Watch Mode

Primary Actor: Software Architect
Level: User Goal
Scope: Bausteinsicht (watcher)
Trigger: The architect runs bausteinsicht watch to keep model and diagram in sync while editing.

Preconditions

An initialized architecture model exists
draw.io diagrams exist

Main Success Scenario

The architect runs bausteinsicht watch.
Bausteinsicht starts file watchers on the model and draw.io files.
On a model-file change, it runs forward sync (UC-3).
On a draw.io-file change, it runs reverse sync (UC-4).
It prints each sync result and keeps watching until the architect stops it with Ctrl+C.

Activity Diagram

Extensions

2a. The file watcher cannot be created or started: Bausteinsicht reports an error and exits — there is no polling fallback. (A watched file that is removed and later recreated is automatically re-watched.) 3a, 4a. Rapid successive changes: events are debounced (300 ms) to avoid conflicting syncs.

Postconditions

Success guarantee: While running, the model and draw.io diagrams are kept in sync continuously.

Minimal guarantee: Each individual sync follows the UC-3 / UC-4 guarantees; debouncing prevents half-applied conflicting syncs.

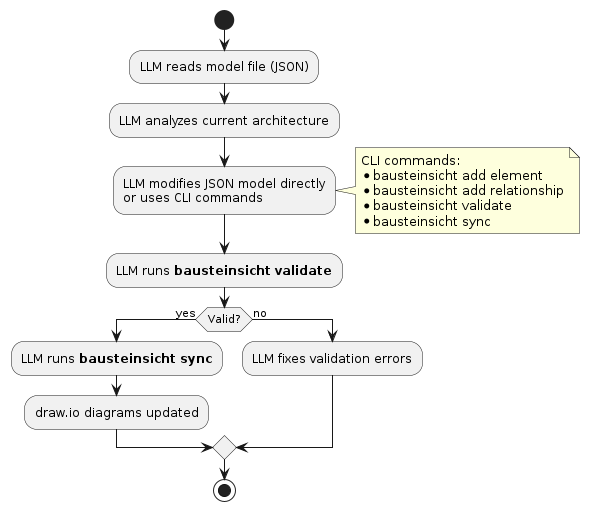

UC-6: LLM-Driven Architecture Modification

Primary Actor: LLM Agent
Level: User Goal
Scope: Bausteinsicht (CLI)
Trigger: An LLM agent is asked to modify the architecture and invokes the Bausteinsicht CLI.

Preconditions

An initialized architecture model exists
LLM agent has access to the Bausteinsicht CLI

Main Success Scenario

The LLM reads the model file (JSON) and analyzes the current architecture.
The LLM modifies the model directly or via CLI commands (add element, add relationship, …).
The LLM runs bausteinsicht validate.
On success, the LLM runs bausteinsicht sync; the draw.io diagrams update.

Activity Diagram

Extensions

3a. The model is invalid — malformed JSON, or a relationship referencing a non-existent element: validate reports the error before sync; the LLM fixes it and re-validates (BR-007, BR-008).

Postconditions

Success guarantee: The model is valid and updated; the draw.io diagrams reflect the changes; new elements are marked for manual positioning.

Minimal guarantee: validate catches invalid changes before sync, so a broken model is never synced.

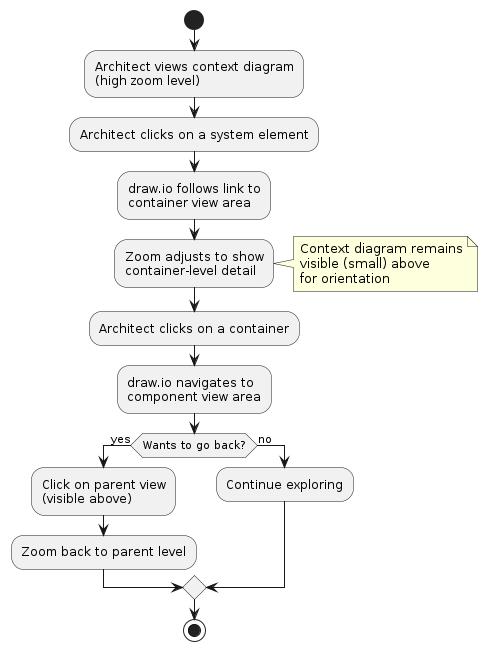

UC-7: Drill-Down Navigation

Primary Actor: Software Architect
Level: User Goal
Scope: Bausteinsicht (generated draw.io pages)
Trigger: The architect opens the generated diagram and wants to move between abstraction levels.

Navigation is page-based — one draw.io page per view, with generated cross-page links and a back button — rather than single-page zoom. See ADR-009 for the rationale.

Preconditions

Multiple views exist at different hierarchy levels (e.g. a context view scoped to a system, a container view scoped to that system’s children)
Sync has run, so each view is rendered as its own draw.io page

Main Success Scenario

The architect opens the context-view page.
The architect clicks a system element that has a deeper view.
draw.io follows the generated page link to that system’s container-view page.
The architect clicks a container element; draw.io follows the link to the component-view page.
The architect clicks the generated back-navigation button to return to the parent view page.

Activity Diagram

Extensions

2a. The target view does not exist: the element carries no page link and is not clickable for drill-down.

Postconditions

Success guarantee: The architect can navigate between abstraction levels by clicking linked elements; each level is a dedicated page, and a generated back-navigation button returns to the parent view.

Minimal guarantee: Elements without a deeper view simply carry no drill-down link; navigation never leads to a missing page.

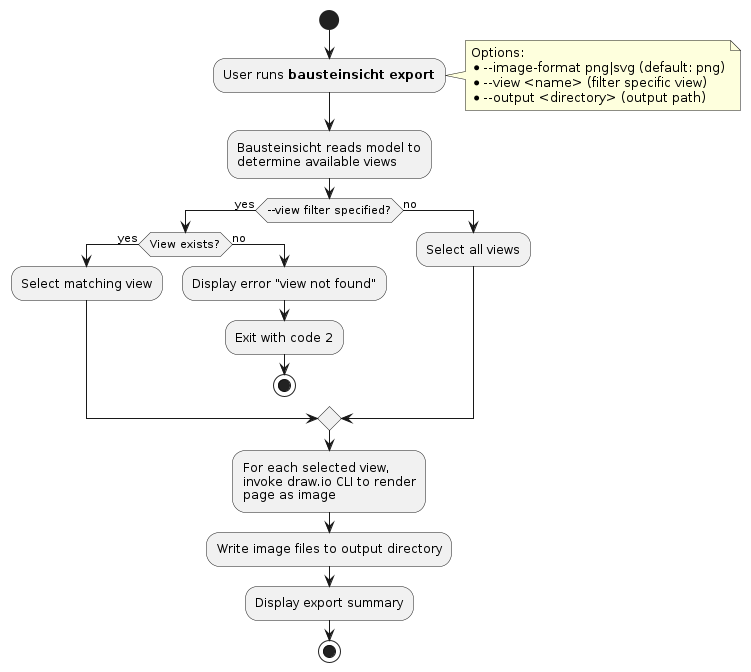

UC-8: Export Diagram Views

Primary Actor: Developer or CI pipeline
Level: User Goal
Scope: Bausteinsicht (export via draw.io CLI)
Trigger: A developer or CI job runs bausteinsicht export to render views as images for documentation or reports.

Preconditions

A synced architecture model exists with at least one view
draw.io CLI is available (headless via xvfb-run in CI environments)

Main Success Scenario

The user runs bausteinsicht export (optionally with --view, --image-format, --output).
Bausteinsicht reads the model to determine the available views.
With --view, it selects the matching view; otherwise it selects all views.
For each selected view, it invokes the draw.io CLI to render the page as an image.
Bausteinsicht writes the image files to the output directory and prints an export summary.

Activity Diagram

Extensions

3a. The --view name is not found: Bausteinsicht exits with code 2 and a message mentioning "view not found". 4a. The draw.io CLI is not available: Bausteinsicht reports an error with installation instructions. 5a. The output directory is not writable: Bausteinsicht reports an error naming the path.

Postconditions

Success guarantee: Image files (PNG or SVG) exist for each exported view, named after the view; exit code is 0.

Minimal guarantee: On any error (unknown view, missing draw.io CLI, unwritable output) the command exits non-zero and does not report success.

Business Rules

Business Rules are the cross-cutting model-consistency constraints enforced by bausteinsicht validate — and therefore at the start of every forward sync (UC-3) and whenever an LLM agent validates (UC-6). Each rule has a stable BR-NNN ID, a severity, and a single source of truth in the code:

error — validation fails; sync aborts (exit code 1).
warning — reported with a WARNING: prefix but non-blocking (exit code 0).

The BR-NNN IDs are the traceability anchors: acceptance criteria (04_acceptance_criteria.adoc) and tests reference them. The authoritative implementation is internal/model/validate.go.

Element rules

BR Rule Severity Source

BR	Rule	Severity	Source
BR-001	An element must declare a `kind`.	error	`validate.go` `validateElement`
BR-002	An element’s `kind` must be defined in `specification.elements`.	error	`validate.go` `validateElement`
BR-003	An element may only have `children` if its kind has `container: true`.	error	`validate.go` `validateElement`
BR-004	An element must declare a `title`.	error	`validate.go` `validateElement`
BR-005	An element ID must not be empty or whitespace.	error	`validate.go` `validateElementID`
BR-006	Element nesting must not exceed `MaxElementDepth`.	error	`validate.go` `validateElement`

BR-001

An element must declare a kind.

error

validate.go validateElement

BR-002

An element’s kind must be defined in specification.elements.

error

validate.go validateElement

BR-003

An element may only have children if its kind has container: true.

error

validate.go validateElement

BR-004

An element must declare a title.

error

validate.go validateElement

BR-005

An element ID must not be empty or whitespace.

error

validate.go validateElementID

BR-006

Element nesting must not exceed MaxElementDepth.

error

validate.go validateElement

Relationship rules

BR Rule Severity Source

BR	Rule	Severity	Source
BR-007	A relationship’s `from` must resolve to an existing element.	error	`validate.go` `validateRelationships`
BR-008	A relationship’s `to` must resolve to an existing element.	error	`validate.go` `validateRelationships`
BR-009	A relationship’s `kind`, if set, must be defined in `specification.relationships`.	error	`validate.go` `validateRelationships`
BR-010	A relationship’s `cardinality`, if set, must be one of `1:1`, `1:N`, `N:N`.	error	`validate.go` `validateRelationships`
BR-011	A relationship’s `dataFlow`, if set, must be one of `sync`, `async`, `request/response`, `publish/subscribe`.	error	`validate.go` `validateRelationships`
BR-012	Two relationships must not be fully duplicate (same `from`, `to`, `kind`, and `label`); they may share a pair if `kind` or `label` differs.	error	`validate.go` `validateRelationships`

BR-007

A relationship’s from must resolve to an existing element.

error
