Publish Your Docs to Confluence

There are times when you’ll want to publish your docs to Confluence, such as when you work in a team where not everyone wants to work with Git. docToolchain lets you publish your Git-based docs to Confluence alongside manually edited Confluence pages.

Another situation is when you want to work with the arc42 template in Confluence. There are several ways to import the template, but most of them require admin access. To get around this, you can set up a fresh copy of the arc42 template in docToolchain and publish it to your Confluence instance.

In this tutorial, you’ll learn how to publish the arc42 template to a Confluence cloud instance.

Step 1. Set Up docToolchain

If you have already completed the install docToolchain and get the arc42 template tutorials, you can skip this part.

For this tutorial, we assume that you work with a macOS/Linux-based system. On Windows, use WSL2 — dtcw4 is a Bash script.

  1. In the Terminal, create a project folder and download the wrapper:

    $ mkdir publishToConfluenceDemo
$ cd publishToConfluenceDemo
$ curl -Lo dtcw4 doctoolchain.org/dtcw4
$ chmod +x dtcw4

  2. Initialise docToolchain by running your first task. The wrapper installs Java and docToolchain on first use and creates a default docToolchainConfig.groovy if none exists.

    $ ./dtcw4 local tasks

  3. Next, download the arc42 template:

    $ ./dtcw4 local downloadTemplate

    Answer the prompts for language and help text. You should now have an src/docs/arc42 folder and the template registered in docToolchainConfig.groovy:

    Project Folder Structure
    .
├── docToolchainConfig.groovy
├── dtcw4
└── src
    └── docs
        ├── arc42
        │   ├── arc42.adoc
        │   └── chapters
        │       ├── 01_introduction_and_goals.adoc
        │       ├── ...
        │       └── 12_glossary.adoc
        └── images

Step 2. Configure Publication to Confluence

All configuration for publishToConfluence lives in the confluence { …​ } section of docToolchainConfig.groovy. In v4 there are no Gradle -P parameters — credentials and settings are read from this config (or, where noted, from environment variables you reference in the config).

  1. In the root of your project folder, open docToolchainConfig.groovy and find the confluence.with { …​ } block.

    docToolchain is preconfigured to publish sample input (the arc42 template) to Confluence. The input for the publishToConfluence task is the HTML produced by the generateHTML task. Point input at the HTML file that generateHTML writes for your document:

    input = [
    [ file: "build/html5/arc42/arc42.html" ],
]

    This must match the inputFiles section at the top of the file, which tells generateHTML which source to render and where the HTML lands:

    inputFiles = [
        [file: 'arc42.adoc', formats: ['html','pdf']],
        /** inputFiles **/
]

  2. Set up the API endpoint. Get your Atlassian Confluence URL, such as https://arc42-template.atlassian.net.

    Endpoint Syntax
    api = 'https://[yourServer]/[context]'

    For Confluence Cloud the context is wiki, so the endpoint is https://arc42-template.atlassian.net/wiki.

    For Confluence Server/Data Center the context may differ. You can verify your endpoint by browsing to [your-api-endpoint]/rest/api/user/current, which should return a JSON description of your current user.

  3. Set the space key, such as 8FE:

    spaceKey = '8FE'

Step 2.1. Configure Confluence Authentication

docToolchain v4 reads credentials from the confluence config — never from CLI parameters. You have three options. Choose one.

It is strongly recommended not to commit plain-text credentials to Git. Read them from environment variables in your config (as shown below) and set those variables locally or as CI/CD secrets.
Option A: Basic authentication (username + password or API token)

Set credentials to the Base64 encoding of user:password (for Confluence Cloud, use your account e-mail as the user and an API token as the password):

// reads the env var CONFLUENCE_CREDENTIALS, expected to hold
// the Base64 of "user:apiToken"
credentials = System.getenv('CONFLUENCE_CREDENTIALS')

To produce the value:

$ echo -n 'me@example.com:my-api-token' | base64
For Confluence Cloud, the API token method only works with a token generated from your central Atlassian account (see below). Plain passwords are not accepted by Confluence Cloud.
Option B: Bearer token (Personal Access Token)

For Confluence Server/Data Center you can use a Personal Access Token. Follow the Confluence documentation to create one, then set:

bearerToken = System.getenv('CONFLUENCE_BEARER_TOKEN')

When bearerToken is set, docToolchain sends Authorization: Bearer <token> and ignores credentials.

Option C: API key header (apikey)

Some setups require an additional API-key header. Set it alongside credentials:

apikey = System.getenv('CONFLUENCE_APIKEY')

Creating a scoped API token (Confluence Cloud)

Atlassian is deprecating unscoped (classic) API tokens. When you create a new API token for Confluence Cloud, you must select specific scopes. If you receive a 403 - Forbidden error, you likely need a new scoped token.

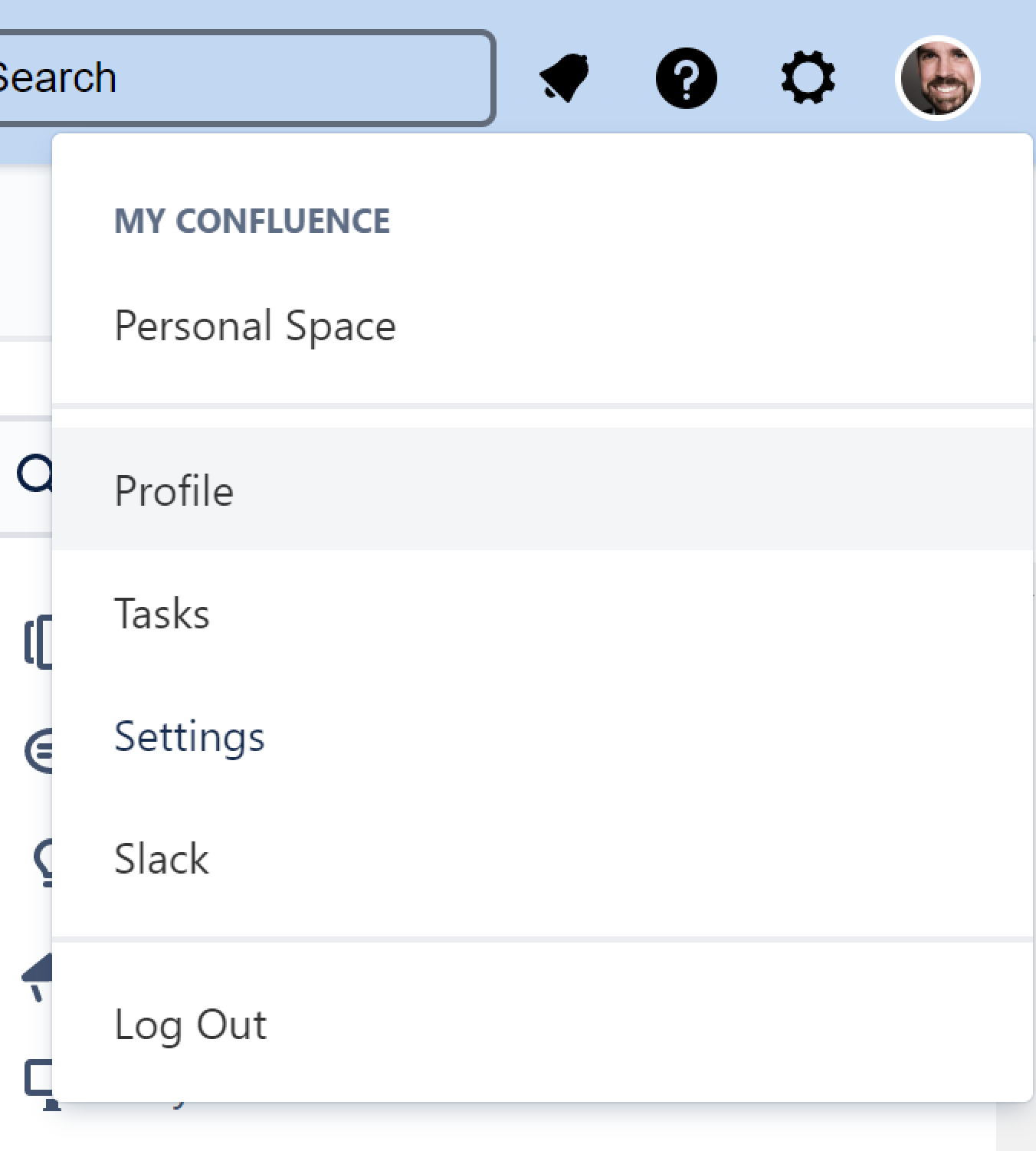

  1. Navigate to your central Atlassian profile.

    070 first

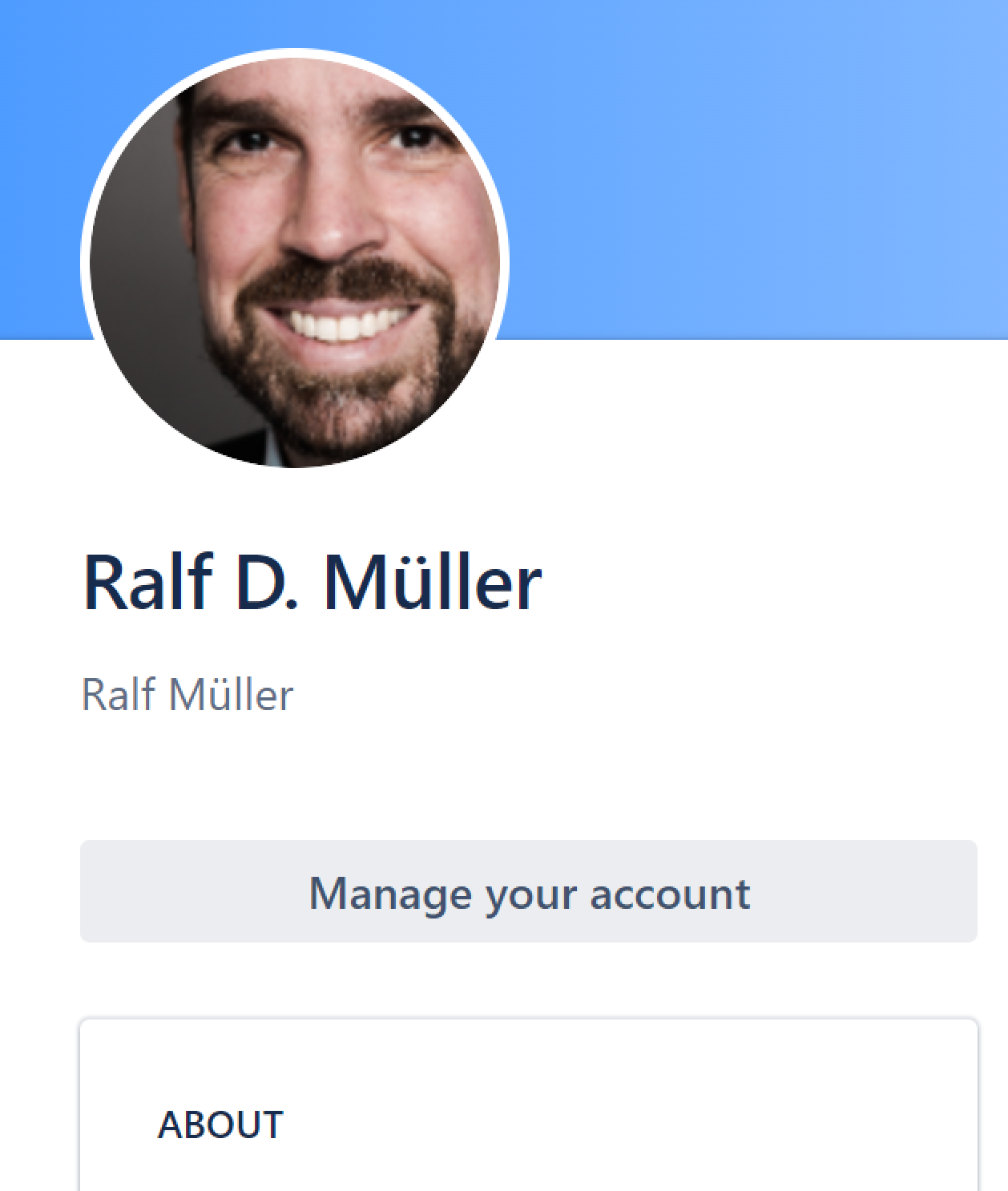

  2. Go to Manage your Account.

    070 second

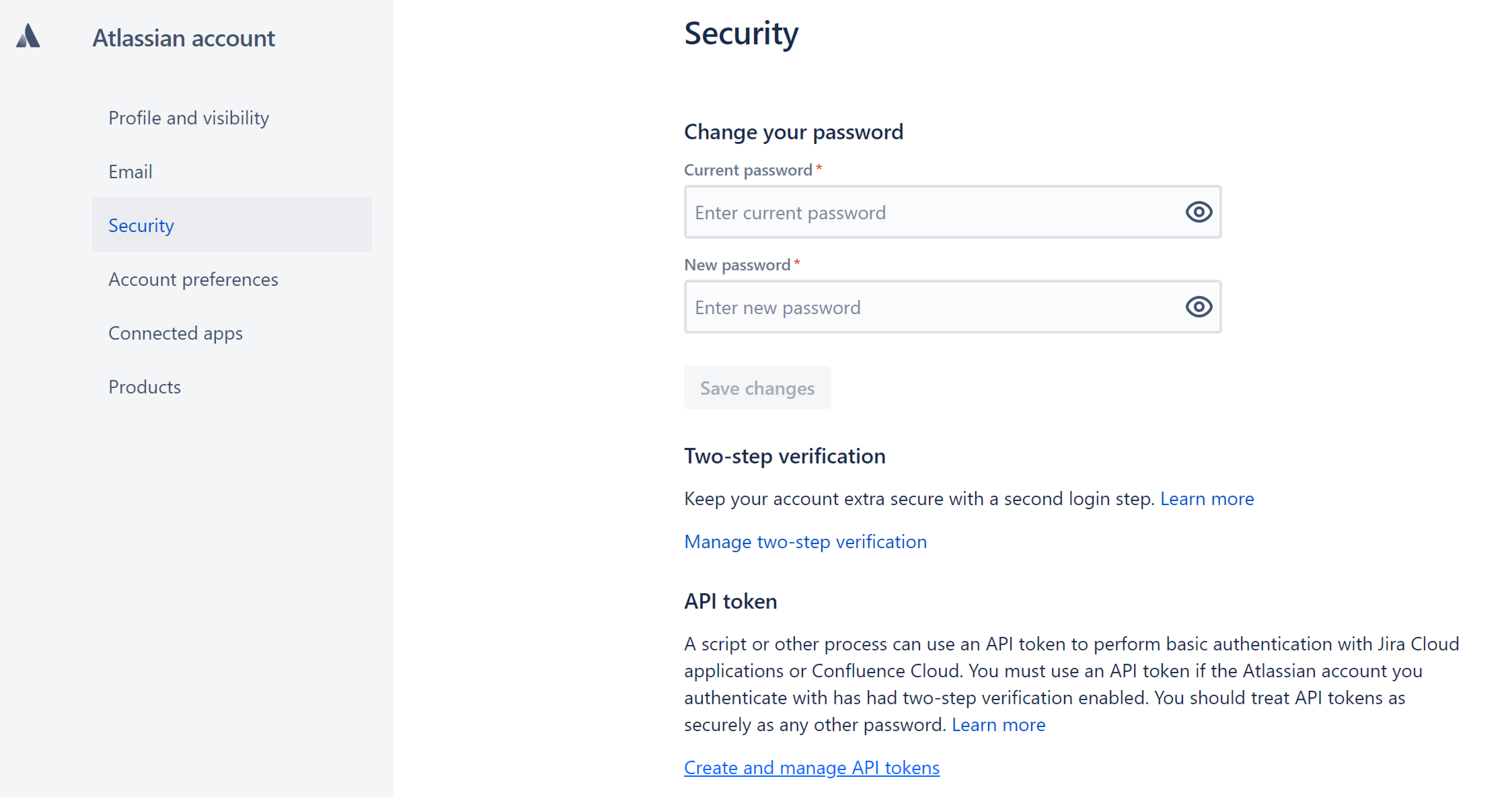

  3. Click Security > API token > Create and manage API tokens.

    070 third
    Here is the shortcut to this page.

  4. Click Create API token.

  5. When prompted to select scopes, choose the following scopes required by docToolchain:

    Scope Purpose

    read:me

    Verify API credentials (read current user info)

    read:confluence-content.all

    Read pages, attachments, and labels

    write:confluence-content

    Create, update, and delete pages, attachments, and labels

    read:confluence-space.summary

    Read space information (required when using API V2)
    If you also use the wipeConfluenceSpace task, write:confluence-content already covers page deletion for API V1. For API V2, delete:page:confluence may also be needed.

  6. Store your API token in a safe location and use it as described in Option A.

Step 3. Publish Your Pages

Make sure the relevant environment variable is set, then publish:

$ export CONFLUENCE_CREDENTIALS=$(echo -n 'me@example.com:my-api-token' | base64)
$ ./dtcw4 local publishToConfluence

The task first runs generateHTML and then creates one Confluence page per arc42 chapter. The console reports the target API and each created page:

docToolchain v4 — publishToConfluence
  target: https://arc42-template.atlassian.net/wiki

> created page 2033844225
1. Introduction and Goals
> created page 2033909761
2. Architecture Constraints
...

If the API URL is missing, the task prints the expected config shape and exits. If authentication fails, the error message names the cause (for example a 403 - Forbidden), so you can check your credentials and token scopes.

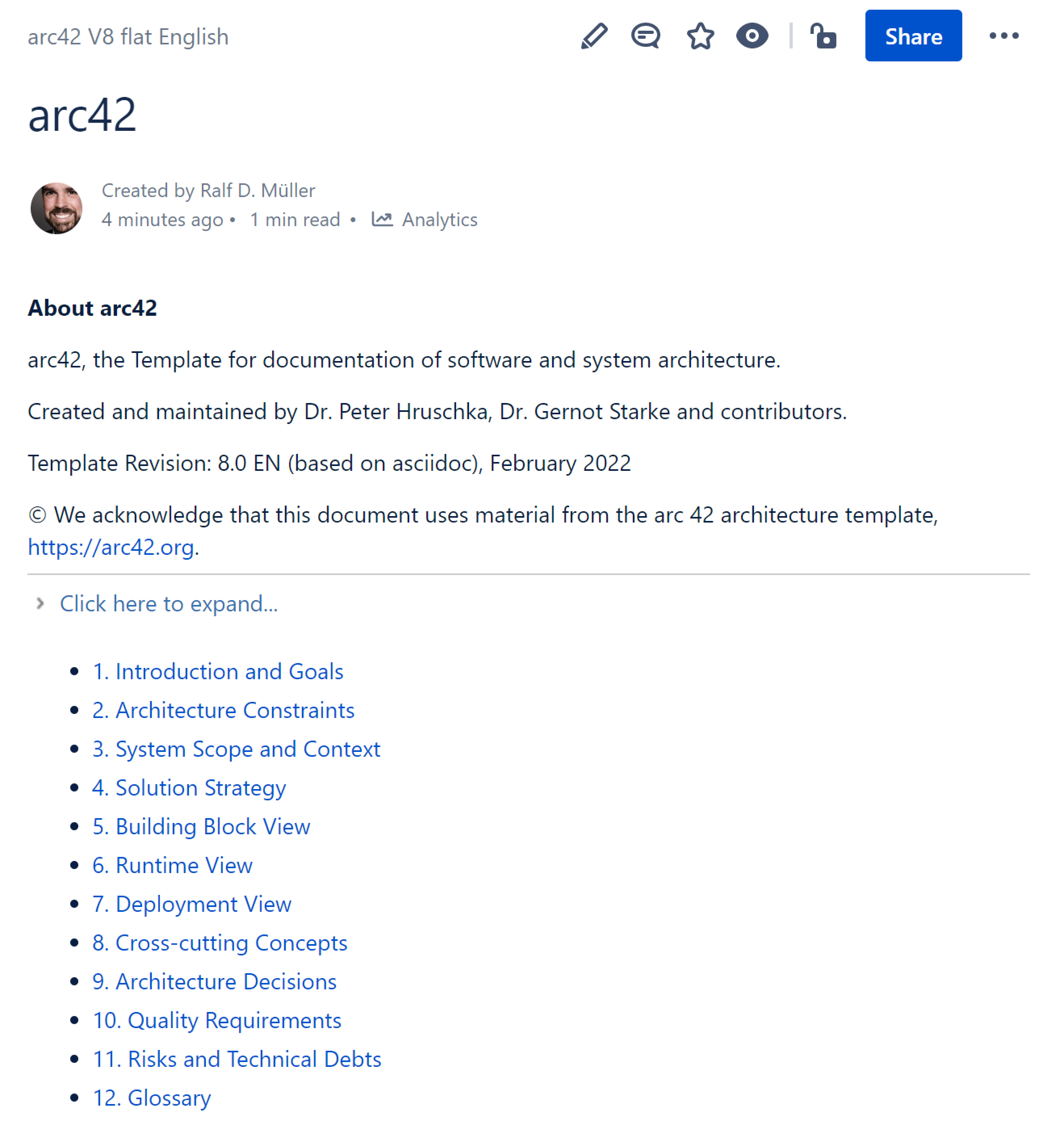

070 fourth
